The Evolution Series

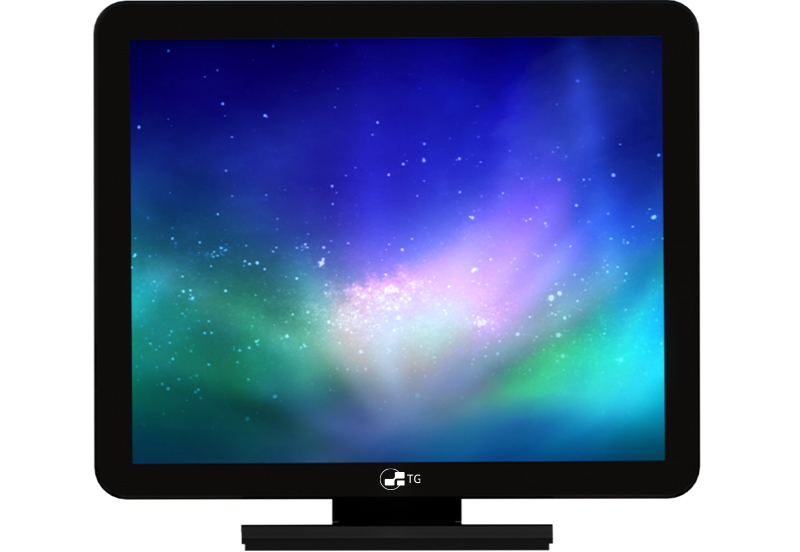

19″ Evolution Tech Armor Monitor

SKU: #TG194

24/7 Reliability with 124,000 hour MTBF

3.0mm Thermally hardened glass for maximum safety

Anti-Glare diffuses mirror like reflection (Permanent)

Anti-Fingerprint and Anti-Microbial nano-coating

IP Rated Edge-to-Edge Sealed Glass

Noise Immunity - Fully shielded against EMI/EMC interference

Windows 10, 8, 7, Linux, Mac OS X, Android Compatible

4 Year Warranty + Advanced Replacement + Lifetime U.S. Phone Support

Available Sizes

19" HD

View In 360°Explore Evolution Series

Get Pricing

Performance Overview

Better Reliability

Tech Global products are designed for the ultimate combination of reliability and performance. The proprietary industrial cooling system enables a 124,000 hour MTBF in 24/7 environments. That is over 3x longer than standard 40,000 hour MTBF displays. Take your reliability to the next level.

Stronger Safety Glass

The thermal strengthening process makes the glass up to 5x stronger than ordinary glass without sacrificing image quality. Never compromise safety with the 3.0mm ultra thick safety glass included standard in the Evolution Series.

Clearer Picture With Anti-Glare

Our breakthrough anti-glare process reduces light glare that is common in high gloss displays for a clearer, sharper, and deeper picture that was not possible before. It is chemically etched which means that it will never wear off – guaranteed.

Standard Ratio

1280 x 1024 HD @ 60HZ.
5:4 standard ratio.

High Compatibility

Compatible with Windows 7, 8, 10, Android, Chrome OS, Linux, and MAC OS X.

VESA Mounting

Fast and easy to install using standard VESA mounting equipment.

Experience The Evolution In 3D

Technical Specifications

Download Spec Sheet

Input Signal

Sync

Input Connectors

HDMI

Internal Speakers

TTL Level (Positive/Negative)

DisplayPort, HDMI, and DVI

HDCP Compatible

Built-in Multimedia Speakers Provide Quality Sound

Sync
TTL Level (Positive/Negative)
Input Connectors
DisplayPort, HDMI, and DVI
HDMI
HDCP Compatible
Internal Speakers
Built-in Multimedia Speakers Provide Quality Sound

Synchronization Range

Horizontal

Vertical

31.5 kHz to 81.1 kHz (Digital)

56 to 76 Hz

Horizontal
31.5 kHz to 81.1 kHz (Digital)
Vertical
56 to 76 Hz

Certifications

60601-1
IPX2
IP34

Medical Grade Design Standards
Splash Proof Safety Rating
Solid Particle + Liquid Protection

60601-1
Medical Grade Design Standards
IPX2
Splash Proof Safety Rating
IP34
Solid Particle + Liquid Protection

Power Consumption

Power On
Power Savings Mode
Energy Star Compliant

12W
0.35W
Yes

Power On
12W
Power Savings Mode
0.35W
Energy Star Compliant
Yes

Display

Viewable Image Size
Ratio
Resolution

19″
5:4 (Standard)
1280 x 1024 HD @ 60Hz

Viewable Image Size
19″
Ratio
5:4 (Standard)
Resolution
1280 x 1024 HD @ 60Hz

Dimensions

Net With Stand
Net Without Stand
Weight With Stand
VESA Configuration

16.8 x 13.9 x 8.1 in.
16.8 x 13.9 x 1.6 in.
14 lbs.
100 x 100mm

Net with Stand
16.8 x 13.9 x 8.1 in.
Net without Stand
16.8 x 13.9 x 1.6 in.
Weight with Stand
14 lbs.
VESA Configuration
100 x 100mm

Environmental Conditions

Operating Temperature

Operating Humidity

Operating Altitude

Storage Temperature

Storage Humidity

Storage Altitude

5-35C/41-95F

20-80%

2000m / 6562 ft.

-10-60C/14-140F

10-85%

12,192m/40,000 ft.

Operating Temperature
5-35C/41-95F
Operating Humidity
20-80%
Operating Altitude
2000m / 6562 ft.
Storage Temperature
-10-60C/14-140F
Storage Humidity
10-85%
Storage Altitude
12,192m/40,000 ft.

Warranty

4 years parts and labor including backlight
